Guia do Mendigo Moderno: Configurando VoIP (Vono) no iPhone com 3CX Phone

Atualização 2024 09 25 O 3CX acabou virando o interfone aqui do condominio! Casa casa pode ter um aparelho fisico de telefone VOIP ou usar o aplicativo, os 2 funcionarem juntos é quase impossivel, e olha que a gente tentou, reclamou, mas to indo pro lado da aceitação e boa. Acho que telefone, telefone, ninguem mais usa nao, só pra ligar pra algum maldito que nao usa/gosta de chat/e-mail/teams/whatsapp e ainda gosta de telefonar igual os astecas faziam. Gente assim deve gostar de ir em banco e lotérica!

Perder suas configurações de algum aplicativo é um problema, deveria ser obrigatório para quem desenvolve programas que existisse a possibilidade do usuario salvar suas configurações/preferencias em algum tipo de backup para restauração em caso de problemas.

A configuração que deixarei aqui é a do programa 3CX Phone, que considero uma excelente solução para quem utiliza o Vono e quer utiliza-lo em seu iphone, diga-se de passagem é muitas vezes melhor que o software indicado pelo site da Vono - atualizacao em 14.09.2013 - o software que a vono disponibilizou ficou muito bom, mas soh funciona pra iOS de 6 pra cima !

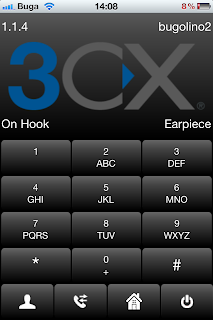

Icone do aplicativo 3CX - VOIP

Figura 1: Ícone do 3CX Phone

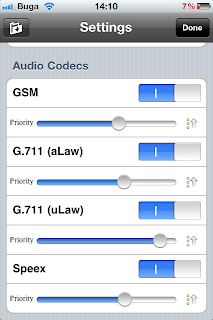

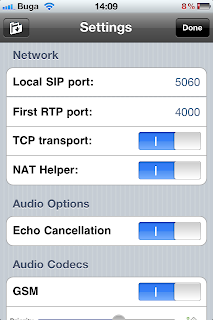

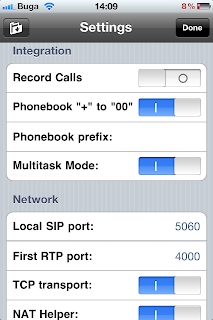

Deixaria, nao consegui fazer as fotos que tirei no iphone ficarem uma só compridona... o pior é que sei que vou ficar puto quando essa merda der pau e eu perder a configuracao... depois preciso colocar as fotos tudo quebrada mesmo e boa...

Pra garantir fica o guia de configuração do fabricante:

Fonte: http://www.3cx.com/blog/3cxphone/iphone/configuring/

Installing and Configuring 3CXPhone for iPhone

INSTALLING

Click here to be taken to the 3CXPhone for iPhone within the Appstore, or start up the Appstore manually
Search for 3CXphone or just type in 3CX. This search will bring up the 3CXPhone for iPhone
Select install
The phone will be installed automatically.

CONFIGURING 3CXPHONE FOR IPHONE

After you have installed 3CXPhone for iPhone, you must configure it to use a VoIP provider or a VoIP PBX (SIP server) in order to make and receive calls. Note that 3CX only provides the software, we do not provide any calling services. After you have obtained an account at a VOIP provider or your Extension details from a VoIP PBX, you must proceed to configure a connection to that account in 3CXPhone as follows:

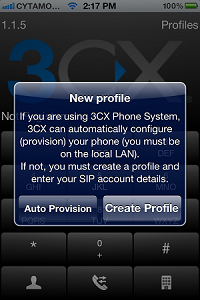

Start 3CXPhone by tapping the 3CXPhone icon. The first time you start 3CXPhone, it will automatically prompt you to create a new connection profile or to use provisioning. To create a profile manually click on “Create Profile” and go to (3)
If you are connecting to 3CX Phone System and you are located on the same LAN (in the office) you can have 3CX Phone for iPhone automatically configured using Auto Provisioning. More information available here (3CX Phone System V10 and higher is required).

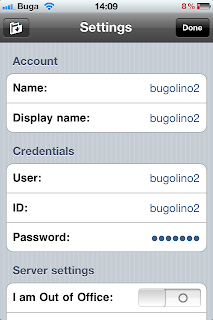

Configure Name and authentication information

Name: Configure a name to identify this account.
Display Name: Enter your first and last name here. This is the name that other phones will see on their display.
User: Enter the extension number or user ID (sometimes referred to as Extension number, SIP ID, Phone number, Account)
ID: Enter your Authentication ID (sometimes referred to as Auth ID, Authentication Name, User name, Authentication user name).
Password: Specify your password in the ‘Password’ field.
NOTE: The terminology used may vary between VoIP Providers and PBXs.

Configure Use As Toggle
There are three states 1) In Office 2) Out of office Tunnel 3) SIP Account
a) If you are connected to a 3CX Phone System and you are in the same network, select In Office
b) If you want to connect to 3CX Phone System and you are out of the office select Out of office Tunnel. For more information see Configuring 3CXPhone for iPhone with 3CX VoIP Tunnel
c) If you want to connect to a VoIP Provider select SIP Account
In the Local PBX IP field enter the IP Address of your PBX or SIP Server example 192.168.1.15. If you are connecting 3CXPhone to a VoIP Provider you can skip this step.
In the “External PBX IP” field, specify the domain name or the public IP of the SIP server (also referred to as registrar server or SIP registrar) of your VoIP Provider or VoIP PBX. For example, sip.myvoipprovider.net.
If your VoIP provider has given you a STUN server name, specify it in the “STUN Server” field here. If not, you can leave the STUN server entry as stun3.3cx.com
If your provider needs a proxy server enter the address in the Proxy field
Click DONE to create the connection profile. This new profile will be displayed in the “Profiles” page. Once you have logged in successfully, your user name will be shown at the top on the right hand side
